3D Interferometer

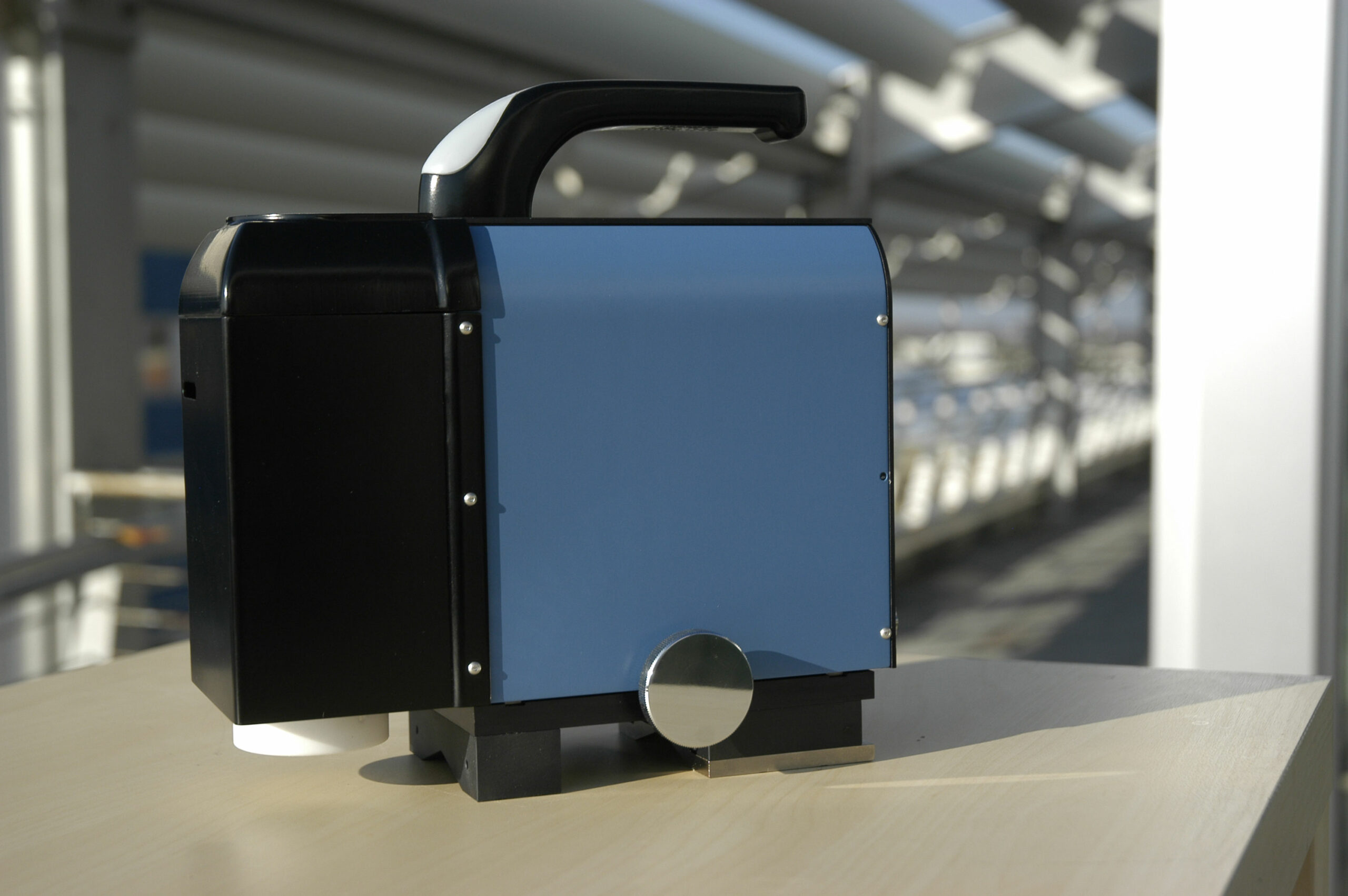

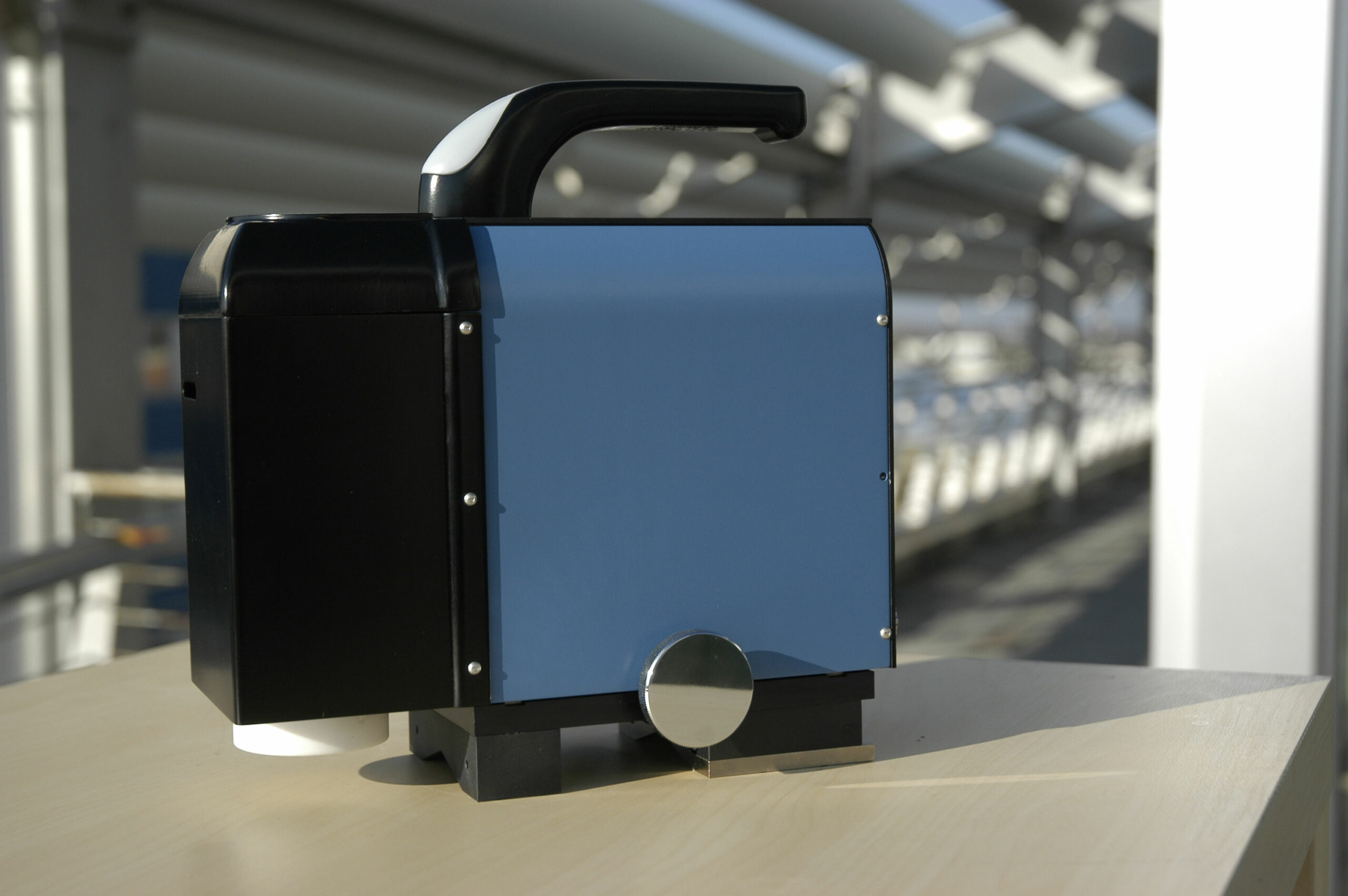

WAVERUNNER
Our latest development is an instrument designed to satisfy the needs of precision measuremeant of 3D surfaces. WaveRunner embeds the art of high quality microscopy and interferometry since it can be used simultaneosly as a microscope or an interferometer.
WaveRunner and the InterferoLAB® software can perform the following functions:
- 2D High precision measurement by means of confocal or dark field microscopy
- 3D measurement sub-micron precision
- Profilometer
- Surface characterization
- Roughness measurement
HARDWARE
WaveRunner Features:
SYSTEM
Type: White Light Interferometry System
Objectives: 10x MIRAU type
Field of View: Objective 10x and native magnifications
Combination 1 : 5x 730×550µm @1.14µm
10x 360X275µm @0,6µm Fine focus travel 13mm
Illuminator broadband light source LED
Area Sensor: 1/2” colour CCD
Data Link to Computer: USB 3.0
Illumination Ring: Multi LED white and coloured illumination.
PERFORMANCE
Scan Range 2mm
Scan step 50 nm
Vertical Res. ≤ 0,1µm independent of the magnification
Data scan rate 10µm/sec
DIMENSIONS AND CONSUMPTION
Type: White Light Interferometry System
ENVIRONMENTAL
Dimensions 240 x 120 x H221 mm
Weight 3,95Kg
Input voltage 24V 60W (Power supply 230VAC)

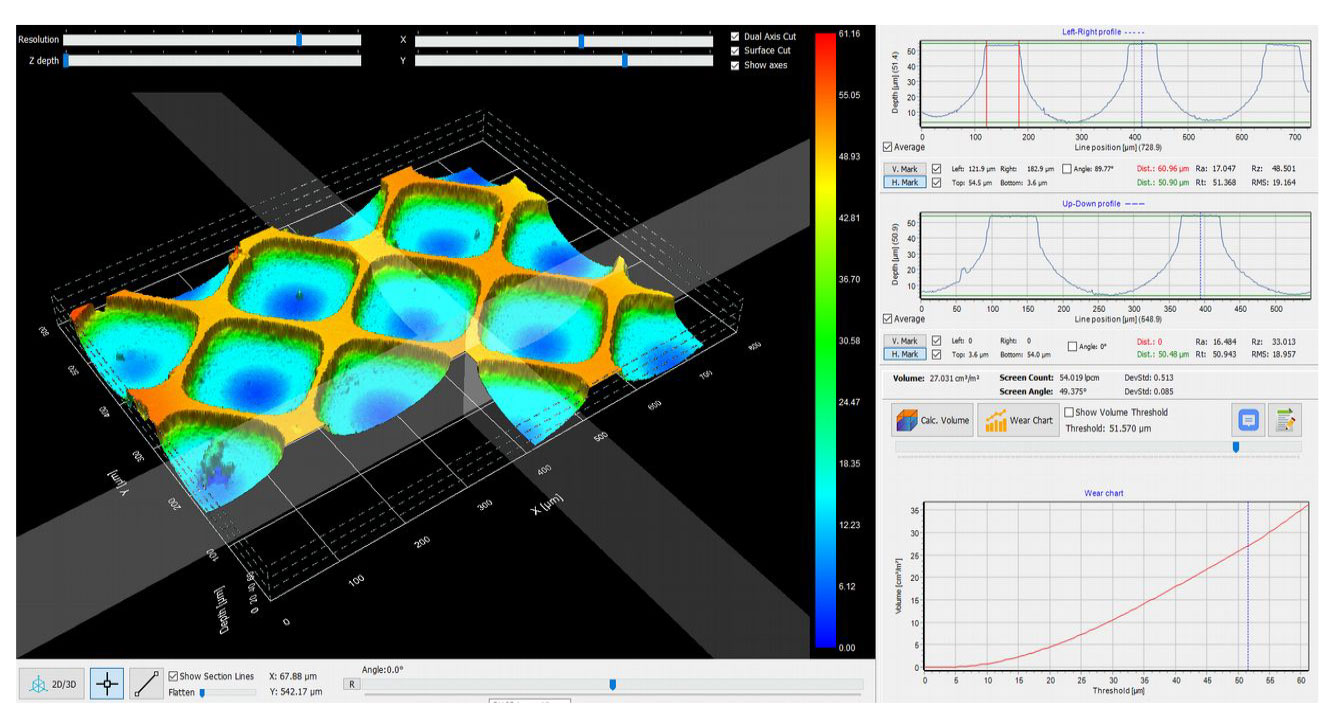

SOFTWARE
WaveRunner Features:
- User friendly acquisition interface.
- Works on multiple scans simultaneously in separate windows.
- Automatic positioning of the axis based on the radius of the scanned cylinder or flat sample height.
- Autofocus
- 2D representation with selectable palette indicating the depth.

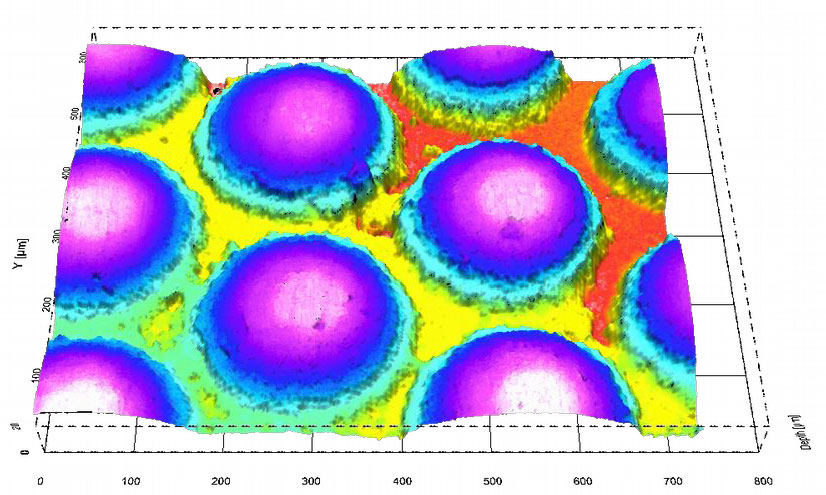

- 3D representation with rotation / zoom / pan.
- X,Y profile chart on point selected in the 2D image.
- Chart of a line drawn freely from two points in the 2D image.
- Angular inclination of the X, Y axes plotted on the charts.
- Surface section on 3D image with plot of the profile.
MEASUREMENTS
- Line and angle screen calculation.
- Measure of distance and depth on the plot by positioning markers.
- Roughness calculation, Ra, Rz, Rt and RMS

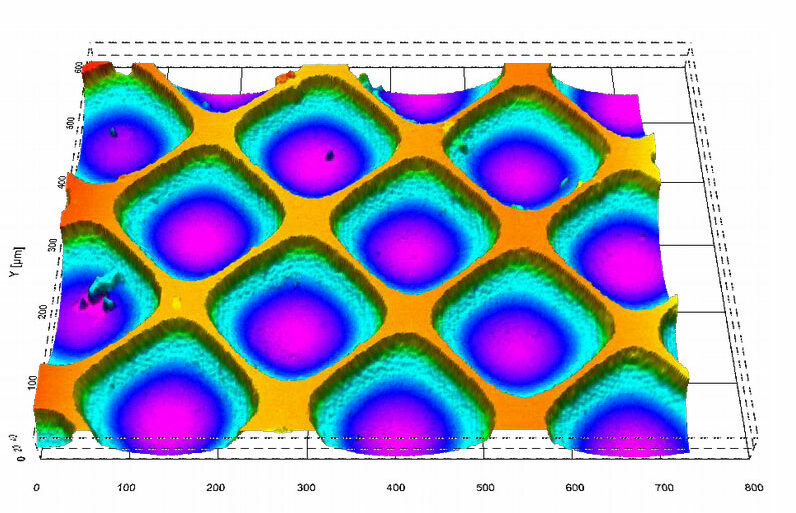

- Automatic calculation of the cells volume with manual refinement. Wear chart – graph of the volume of the cells according to the consumption of the cylinder.
- Correction of the curved surface of cylinder.
MISC
- Acquisition export in proprietary format TIFF or STL.
- Data export on cvs file.
- Printable report of main data and plots with customized logo.

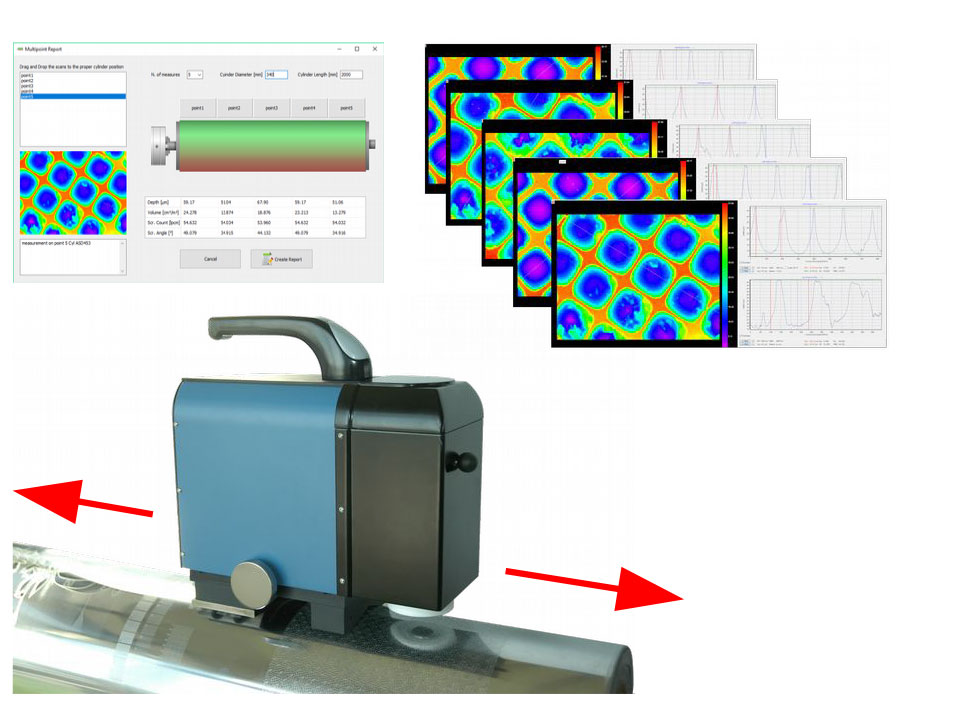

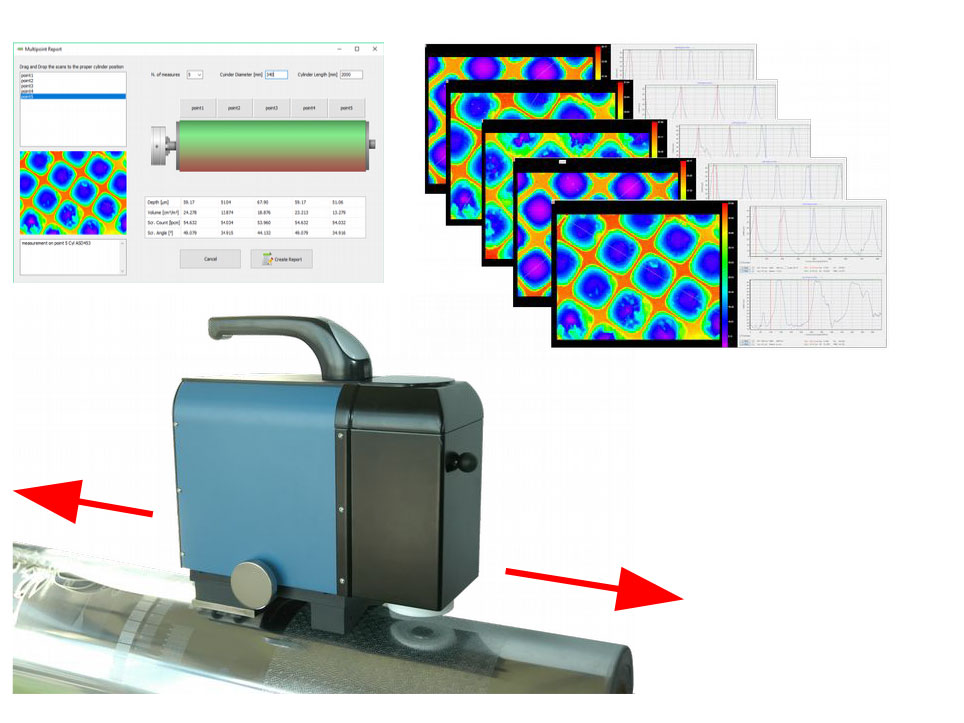

- Multipoint report.
APPLICATIONS
ANILOX
OPTICS
GRAVURE

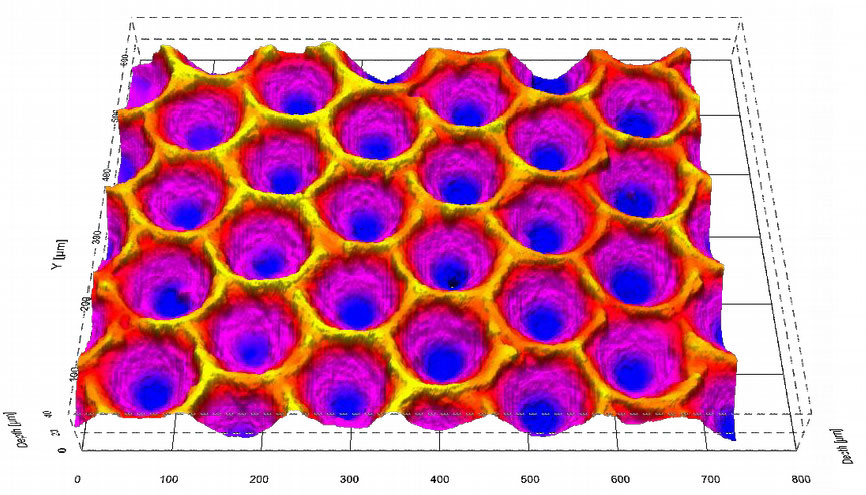

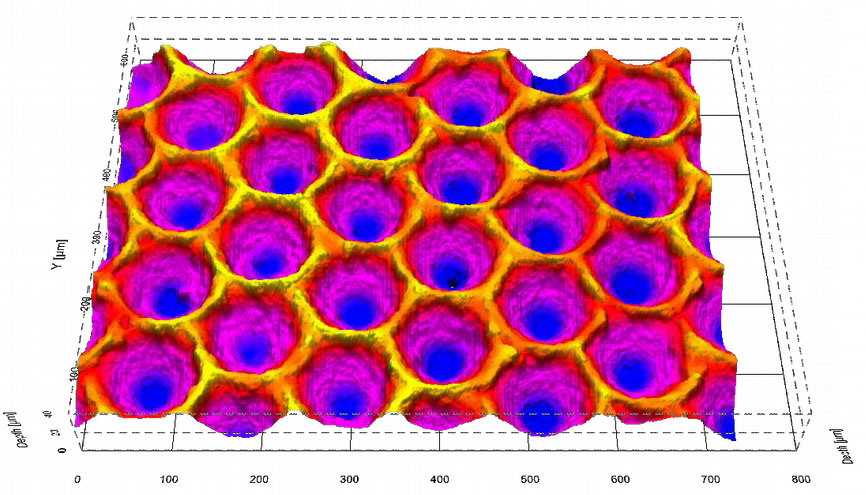

ANILOX
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incidunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrum exercitationem ullamco laboriosam, nisi ut aliquid ex ea commodi consequatur. Duis aute irure reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint obcaecat cupiditat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.

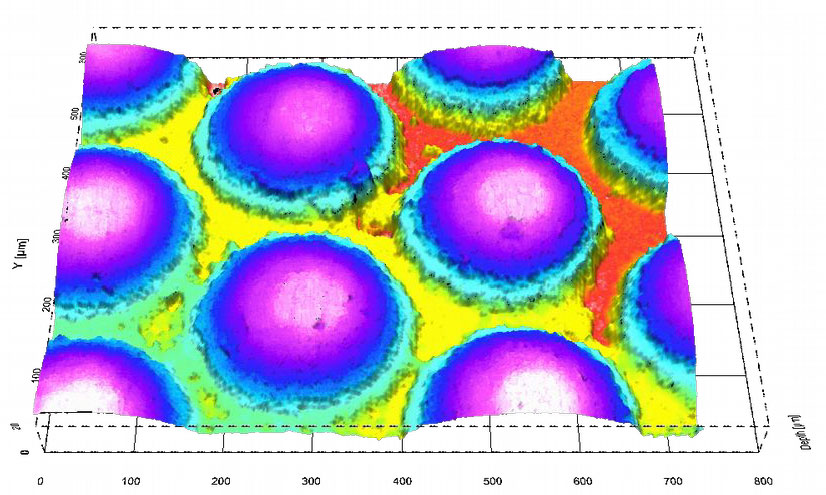

OPTICS
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incidunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrum exercitationem ullamco laboriosam, nisi ut aliquid ex ea commodi consequatur. Duis aute irure reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint obcaecat cupiditat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.

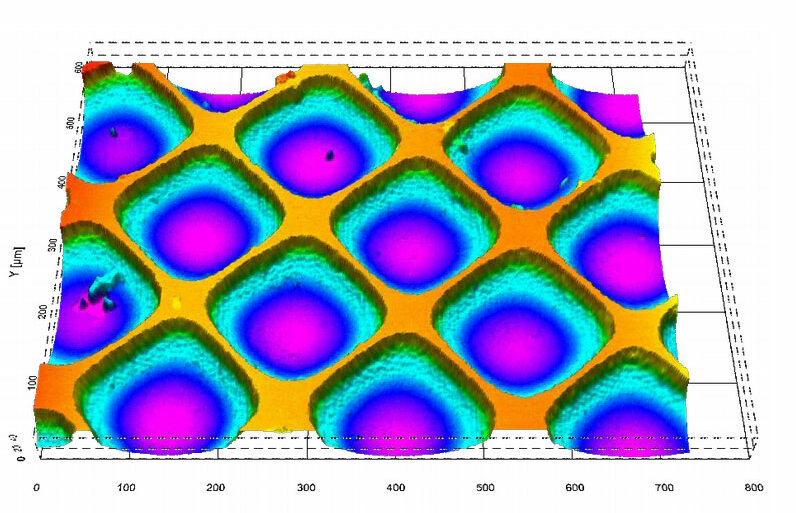

GRAVURE
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incidunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrum exercitationem ullamco laboriosam, nisi ut aliquid ex ea commodi consequatur. Duis aute irure reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint obcaecat cupiditat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.
Contact us if you want to know more about DV 3D Interferometer.
